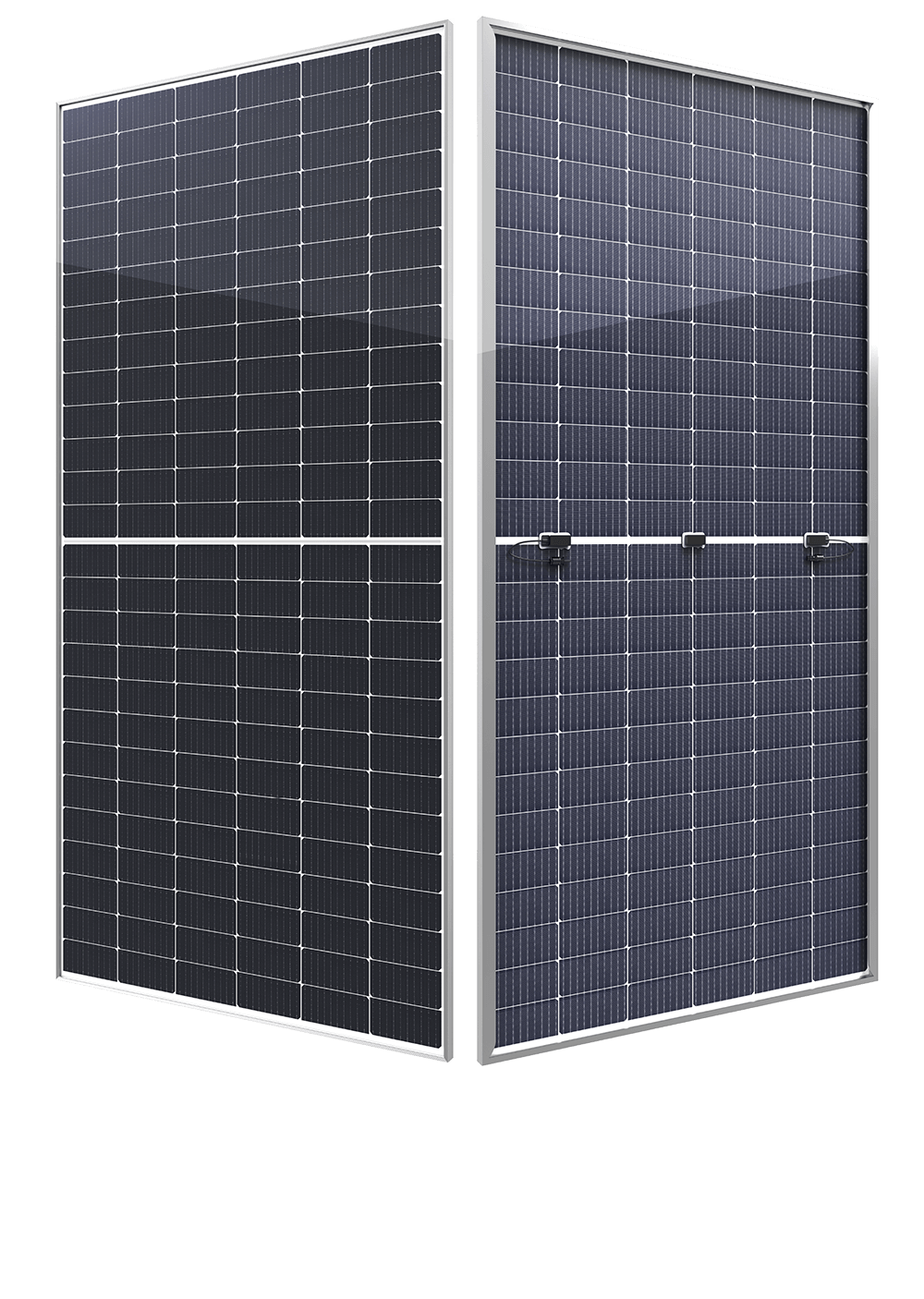

182 Mono-Bifacial GPMDG-(580-605)W(156)

P-Type 182 Mono-Bifacial module
GPMDG-(580-605)W(156)

182 Mono-Bifacial GPMDG-(580-605)W(156)
580-605W

Output power

21.6%

Maximum efficiency

0~+3%

Power tolerance

Product Performance
SMBB Technology

SMBB Technology

Better light trapping and current collection to improve module power output and reliability.

Reduced Hot Spot Loss

Reduced Hot Spot Loss

Optimized electrical and lower operating current for reduced hot spot loss and better temperature coefficient.

PID Resistance

PID Resistance

Excellent Anti-PID performance guarantee via optimized mass-production process and materials control.

182 Mono-Bifacial GPMDG-(580-605)W(156)
Durability Agginst Extreme Environmental Conditions

Durability Agginst Extreme Environmental Conditions

High salt mist and ammonia resitance.

Enhanced Mechanical Load

Enhanced Mechanical Load

Certified to withstand;wind load(2400 Pascal)and snow load(5400 Pascal).

High Reliability

High Reliability

12 years product warranty;25 years linear power warranty.

Mechanical Parameters
Cell Type
P type 182 Mono-crystalline
No. of cells
156(2x78)
Dimensions
2465x1134x30mm
Front Glass
2.0mm,Anti-Reflection Coating
Back Glass
2.0mm,Heat Strengthened Glass
Frame
Anodized Aluminium Alloy
Junction Box
IP68 Rated
Output Cables
TUV 1x4.0mm:(+):300mm,(-):200mm or Customized Length
Application Parameters
